SENNHEISER EW 500 G4-MKE2
SENNHEISER EW 500 G4-MKE2
SENNHEISER EW 500 G4-MKE2

SENNHEISER EW 500 G4-MKE2

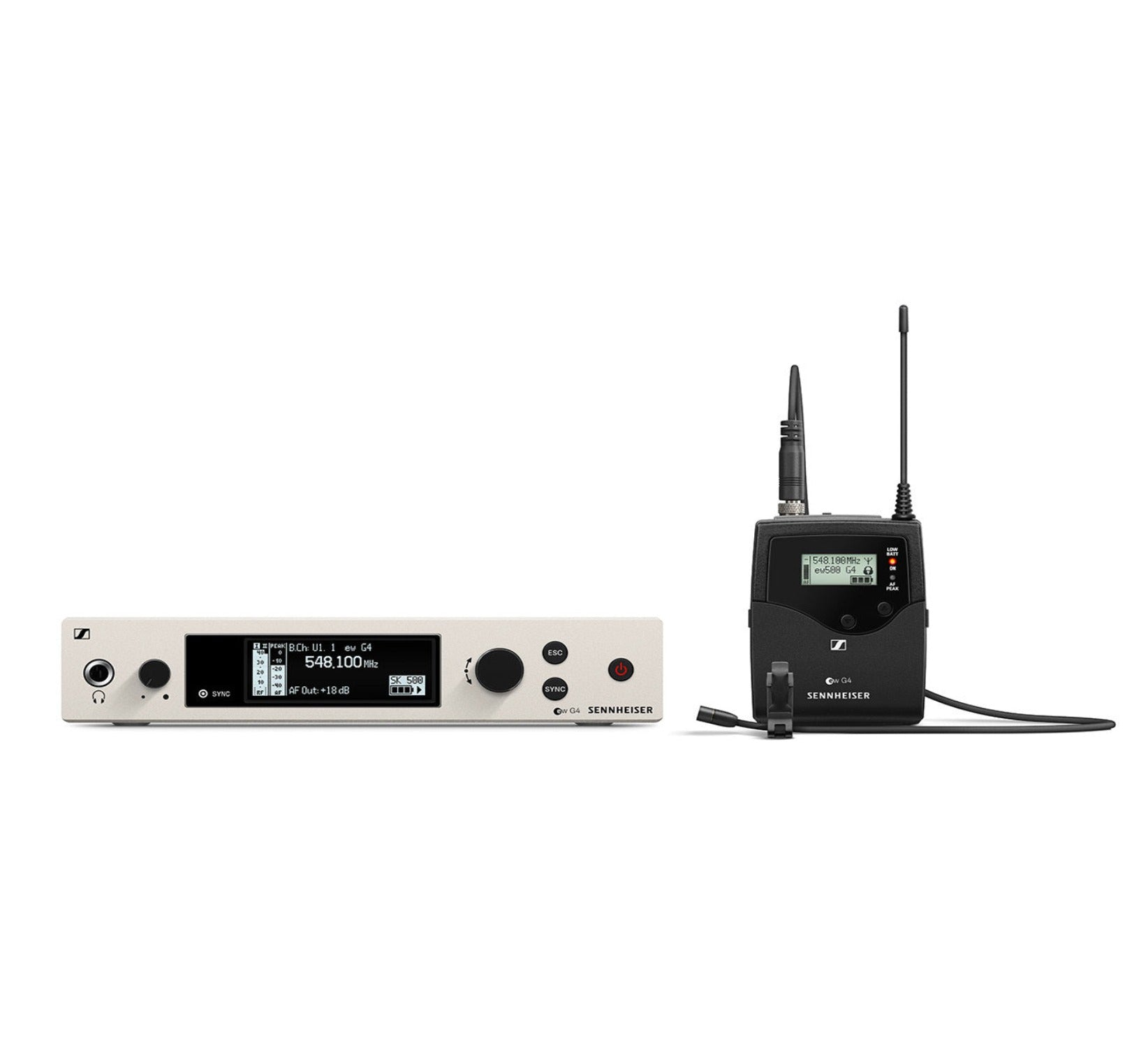

The pro‘s choice. Renowned sound engineers rely on ew 500 G4‘s flexibility, especially when handling multi channel settings on the world‘s music stages. Up to 88 MHz bandwidth, up to 32 channels. Ethernet connection for Wireless Systems Manager (WSM) control software included for advanced frequency coordination in multi channel setups.
The pro‘s choice for impressive presentations. The professional MKE 2 Gold omni-directional condenser microphone resists the test of time on any big live stage and ensures a high speech intelligibility on any stage, indoors and outdoors.

Enquire Now

Product details

More Information

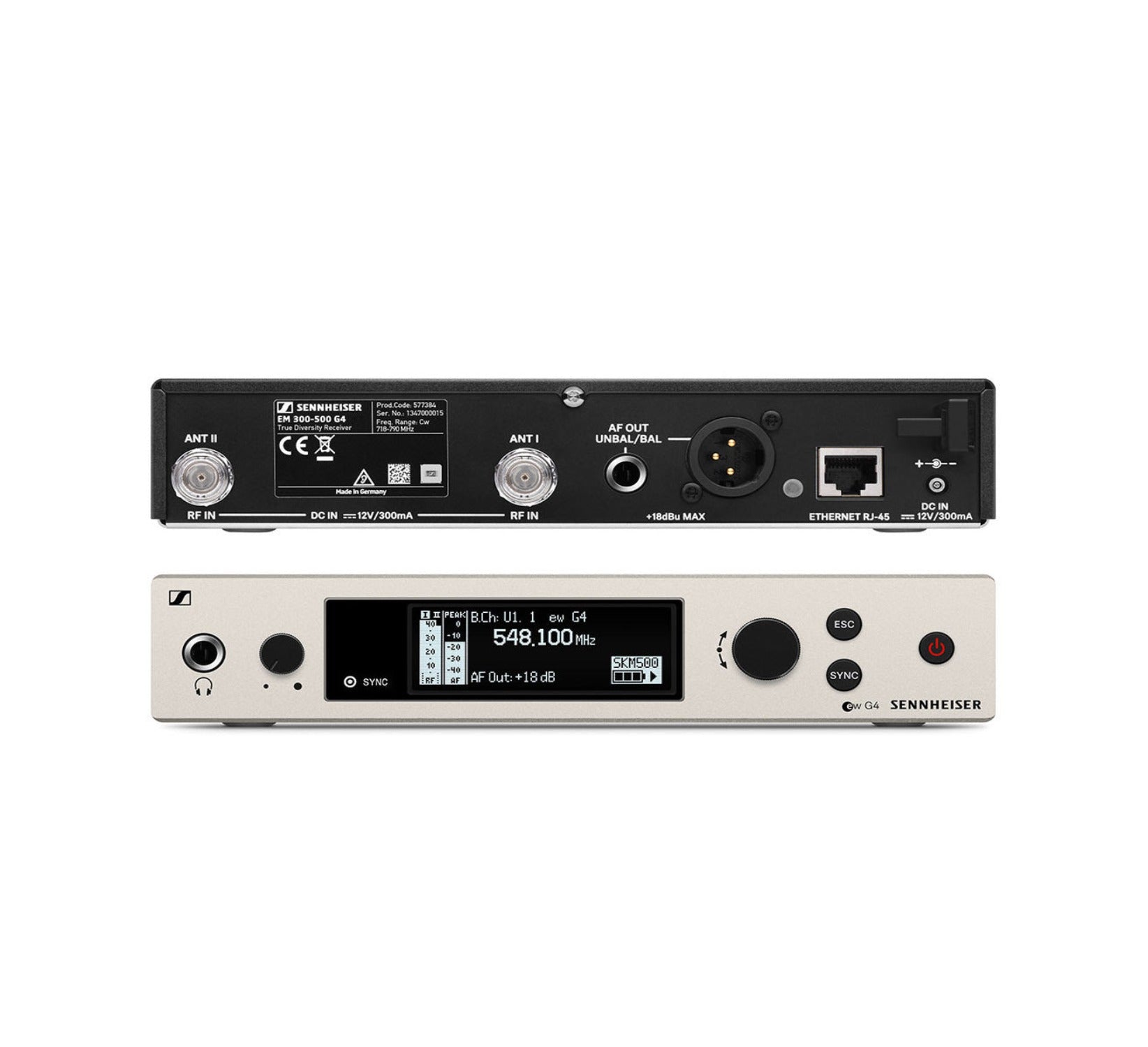

  • True diversity half-rack receiver in a full-metal housing with intuitive OLED display for full control
  • Easy and flexible wireless synchronization between transmitter and receiver via infrared
  • Up to 32 compatible channels
  • Up to 88 MHz bandwidth with 3520 selectable frequencies, fully tunable in a stable UHF range
  • Ethernet connection for Wireless Systems Manager (WSM) control software for advanced frequency coordination in multi-channel setups
  • High RF output power (up to 50 mW, adjustable in three steps 10/30/50) depending on country regulations
Technical Specifications
EM 300-500 G4
  • Frequency rangeAS: 520 - 558 MHzAw+: 470 - 558 MHzBw: 626 - 698 MHzCw: 718 - 790 MHzDw: 790 - 865 MHzGBw: 606 - 678 MHzGw: 558 - 626 MHzGw1: 558 - 608 MHzJB: 806 - 810 MHzK+: 925 - 937,5 MHz
  • DimensionsApprox. 202 x 212 x 43 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • WeightApprox. 980 g
  • Audio output6.3 mm jack socket (unbalanced): +12 dBuXLR socket (balanced): +18 dBu
  • Signal-to-noise ratio≥ 115 dBA
  • Switching bandwidthup to 88 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • ModulationWideband FM
  • Power supply12 V DC
  • Antenna connector2 BNC sockets
  • Current consumption350 mA
  • Adjacent channel rejectionTypically ≥ 75 dB
  • Intermodulation attenuationTypically ≥ 70 dB
  • Receiving frequencyMax. 3520 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • RF sensitivity< 2.5 μV for 52 dBA eff S/N
  • Squelch5 to 25 dBμV in steps of 2 dB
  • EqualizerPreset 1: FlatPreset 2: Low Cut (-3 dB at 180 Hz)Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)Preset 4: High Boost (+6 dB at 10 kHz)
  • Temperature Range-10 °C to +55 °C
  • Receiver PrincipleTrue diversity
  • Blocking≥ 75 dB

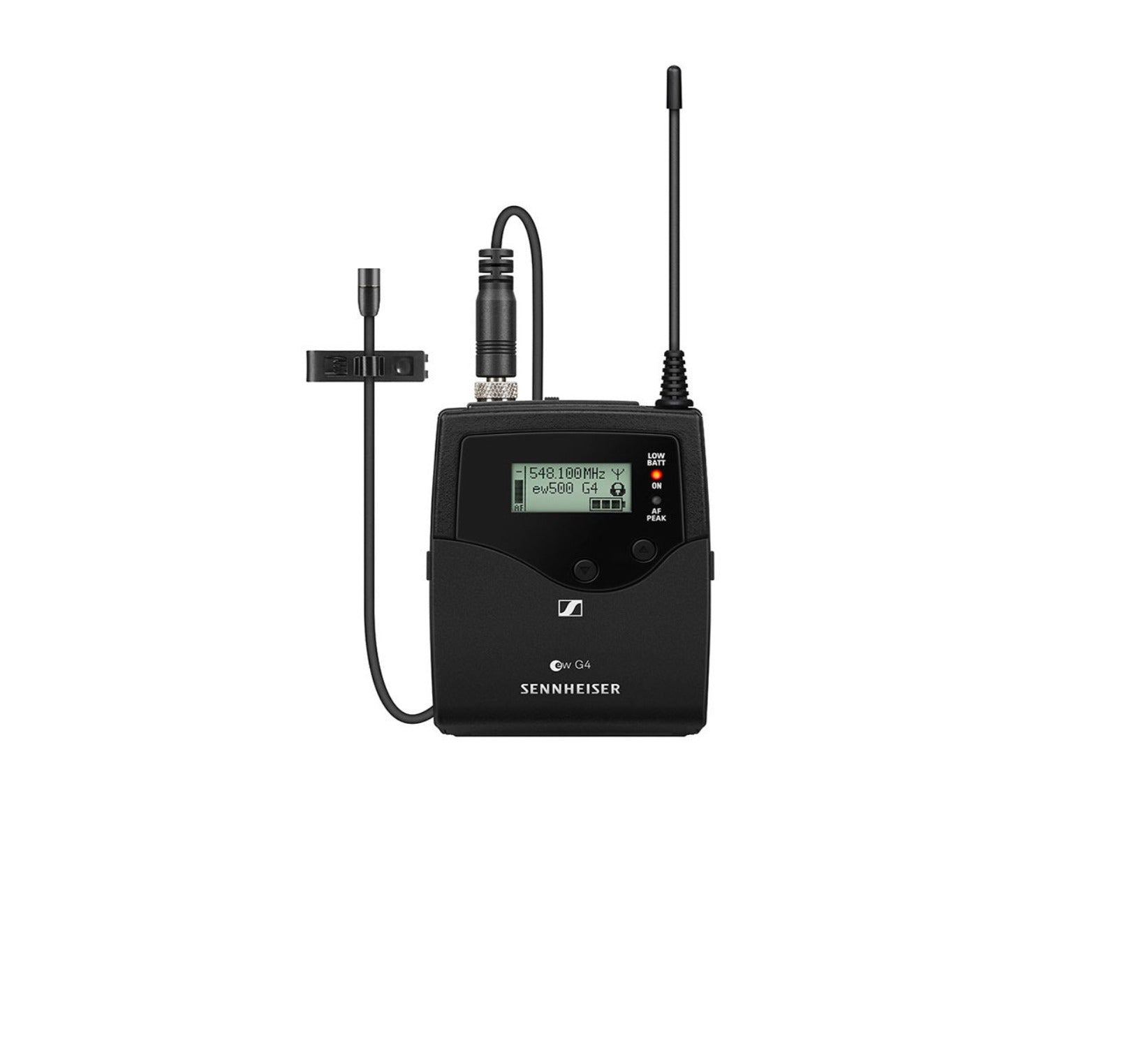

SK 500 G4
  • DimensionsApprox. 82 x 64 x 24 mm
  • CompanderSennheiser HDX
  • THD, total harmonic distortion≤ 0.9 %
  • Weight(incl. batteries) approx. 160 g
  • Signal-to-noise ratio≥ 115 dBA
  • RF output powerswitchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
  • Switching bandwidthup to 88 MHz
  • Peak deviation±48 kHz
  • Nominal deviation±24 kHz
  • Operating timeTypically 8 h
  • ModulationWideband FM
  • Power supply2 AA batteries, 1.5 V or BA 2015 accupack
  • Current consumptionat nominal voltage: typ. 180 mAwith transmitter switched off: ≤ 25 µA
  • Input impedance40 kΩ, unbalanced / 1 MΩ
  • Max. Input voltage3 Veff
  • Powering3 V battery / 2.4 V rechargeable battery
  • Transmission frequencyMax. 3520 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 32 factory-preset channels, no intermodulation, 6 frequency banks with up to 32 programmable channels
  • AF frequency responseMic: 80 – 18,000 Hz, Line: 25 – 18,000 Hz
  • Temperature Range-10 °C to +55 °C
  • Frequency stability≤ ±15 ppm
MKE 2
  • Connector3.5 mm jack
  • Frequency response20 to 20.000 Hz ± 3 dB
  • Max. sound pressure level142 dB
  • Cable lengthapprox. 1.60 m
  • Transducer principlepre-polarized condensor microphone
  • Pick-up patternomni-directional
  • Sensitivity in free field, no load (1kHz)5 mV/Pa, ± 3 dB
  • Equivalent noise level26 dB
  • Equivalent noise level weighted as per CCIR39 dB
