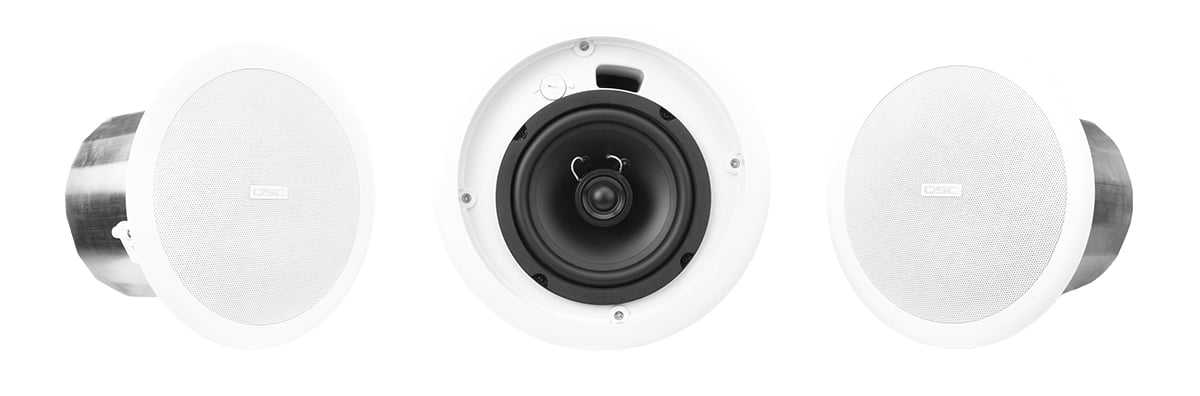

QSC AC- C6T

QSC AC- C6T

  • High quality 6.5-inch 2-way system provides exceptional clarity through the critical voice range.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Intrinsic Correction™ voicings available via Q-SYS Platform.
  • White (RAL 9010).
Enquire Now

Product details

Technical Specifications

Effective Frequency Range:

65 Hz – 20 kHz

Rated Noise Power / Voltage:

30 watts / 15.5 volts (RMS)

Broad-band Sensitivity:

89 dB SPL

Coverage Angle (−6 dB):

110° (500 Hz to 5 kHz)

Maximum Continuous SPL:

104 dB

Maximum Peak SPL:

110 dB

Rated Impedance:

8 ohms

Transformer Taps:


  • 70V: 30W, 15W, 7.5W, 3.7W, 1.9W, 8-ohm bypass

  • 100V: 30W, 15W, 7.5W, 3.8W, 8-ohm bypass

HF Transducer:

0.86-inch silk dome tweeter, coaxially mounted

LF Transducer:

6.5-inch polypropylene cone with butyl rubber surround

Input Connector Type:

Euroblock connector with parallel output terminals

Baffle Material:

Painted ABS polymer

Grille Material:

Powder-coated steel

Back Can Material:

Galvanized steel

Testing / Certifications:

Listed UL1480, UL2043 – safe for use in air-handling spaces

Net Weight:

7.6 lb (3.5 kg)

Product Dimensions:

10.24" × 8.4" (260 × 213 mm)

Cut-out Dimensions:

9" (229 mm)

Ceiling Capture Thickness:

0.25" – 1.5" (6.35 – 38.1 mm)

Shipping Weight:

21 lb (9.5 kg) – pair packed

Shipping Dimensions:

24.5" × 12.5" × 12.8" (622 × 318 × 324 mm)

Included Accessories:

Rails and C-ring for ceiling tile installation
