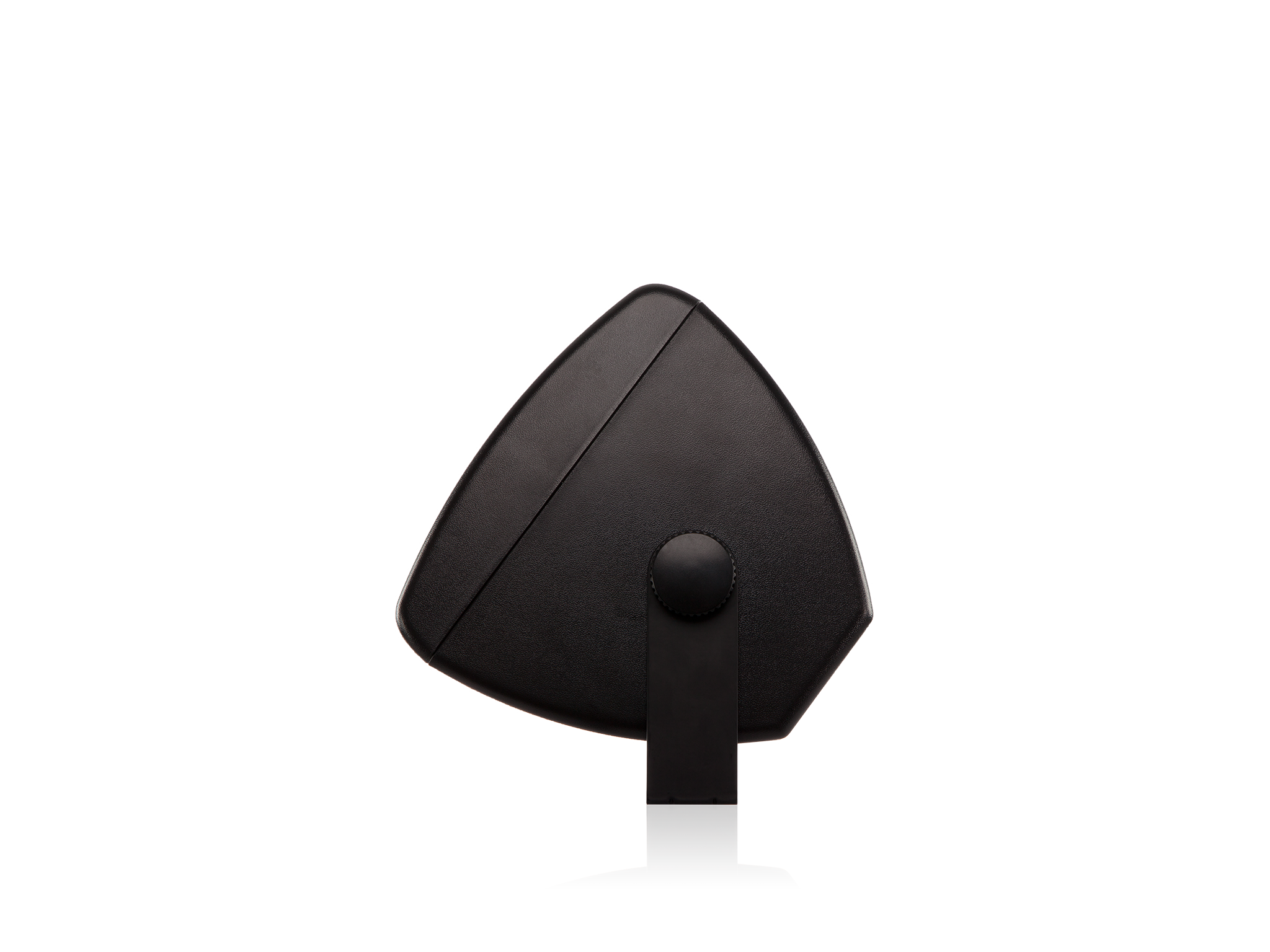

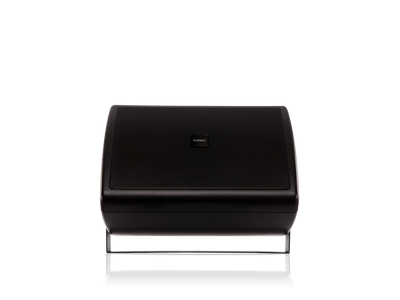

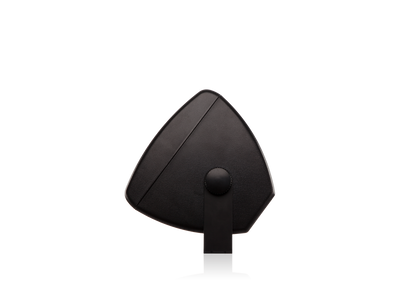

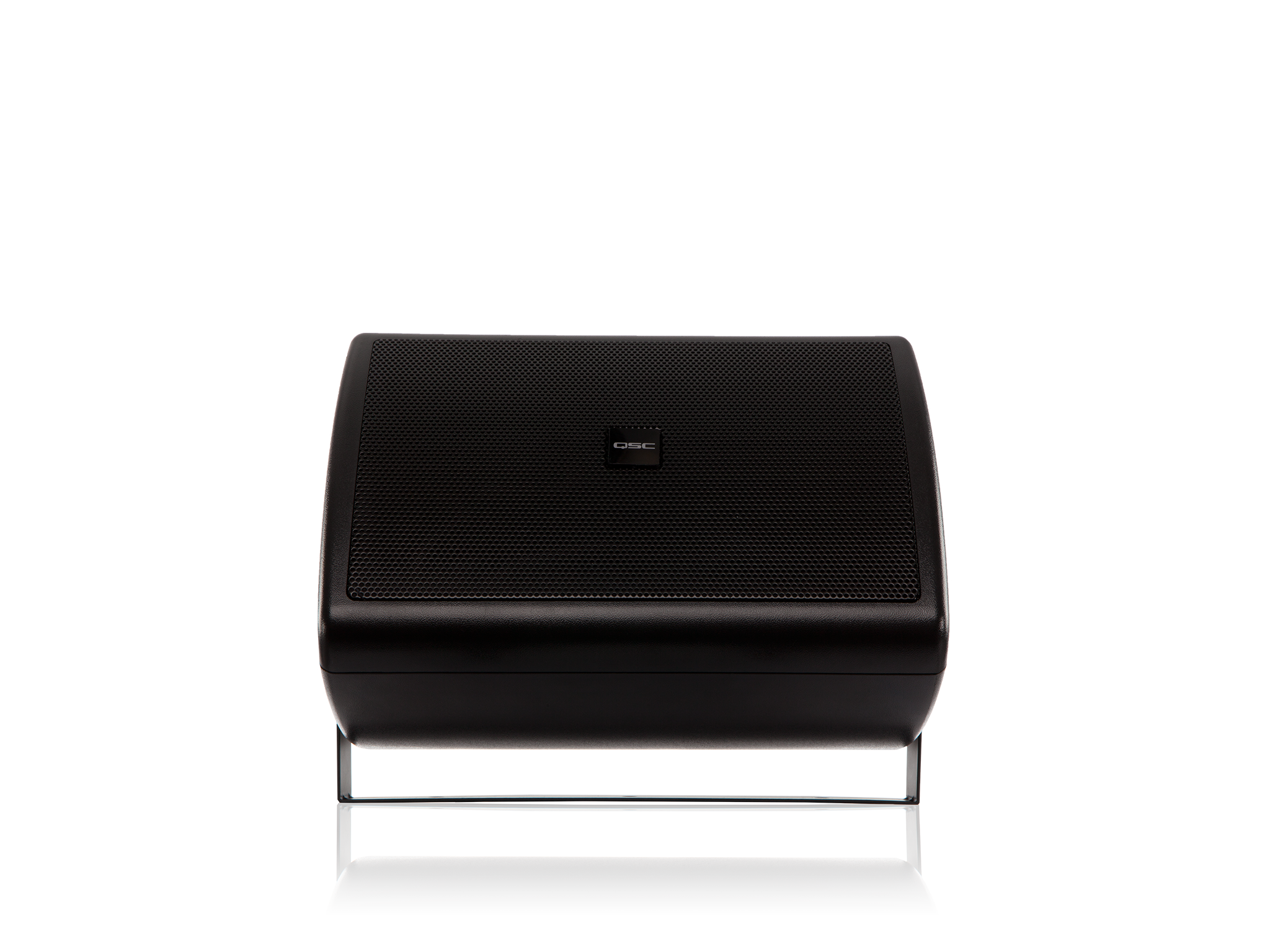

QSC AC S 6 T BLACK
QSC AC S 6 T BLACK

QSC AC S 6 T BLACK

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 70 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.
  • 4-pole Euroblock connector eases system wiring.
  • Intrinsic Correction™ voicings available via Q-SYS Platform.
Enquire Now

Product details

Technical Specifications

System Details

• Effective Frequency Range: 60 Hz – 20 kHz

• Rated Noise Power / Voltage: 30 watts / 15.5V RMS

• Broadband Sensitivity: 86 dB SPL

• Coverage Angle (-6 dB): 130° Conical (500 Hz – 5 kHz)

• Directivity Factor (Q): 6

• Directivity Index: 8 dB

• Maximum Continuous SPL: 101 dB

• Maximum Peak SPL: 107 dB

• Rated Impedance: 8 Ω

• Recommended Amplifier Power: 60W (8Ω)

Transformer Taps

70V: 30W / 15W / 7.5W / 3.7W / 1.9W

100V: 30W / 15W / 7.5W / 3.8W

Bypass: 8Ω

Transducers

• LF Driver: 6.5" (165 mm) polypropylene woofer, 1" voice coil

• HF Driver: 1" (25 mm) aluminium dome tweeter, 1" voice coil

Connections

• Input Connector: Euroblock connector with parallel output terminals

Enclosure / Build

• Enclosure Material: UV-treated high-impact ABS polymer

• Grille Material: Powder-coated steel

• Yoke Material: Powder-coated steel with brass inserts

Environmental Ratings

• Ingress Protection: IP-44

• Operating Environment: Indoor use

• Temperature Rating: -20°C to 50°C (-4°F to 122°F)

Physical Details

• Product Dimensions (H × W × D):

– 11.9 × 8.5 × 7.8 in

– 303 × 215 × 197 mm

• Net Weight: 8.3 lb / 3.8 kg

• Shipping Weight (pair): 18.6 lb / 8.4 kg

• Shipping Dimensions (H × W × D):

– 14.1 × 10.5 × 18.5 in

– 359 × 267 × 470 mm

Included Accessories

• Yoke mount system

• Euroblock connector
