QSC AC C 8T WHITE (1X2)
QSC AC C 8T WHITE (1X2)
QSC AC C 8T WHITE (1X2)
QSC AC C 8T WHITE (1X2)

QSC AC C 8T WHITE (1X2)

  • High quality transducers provide exceptional clarity through the critical voice range.
  • Improved musicality often not seen in typical BGM class products.
  • Ported baffle for increased low frequency extension down to 52 Hz.
  • Low saturation 70/100V transformers with 8 ohm bypass.

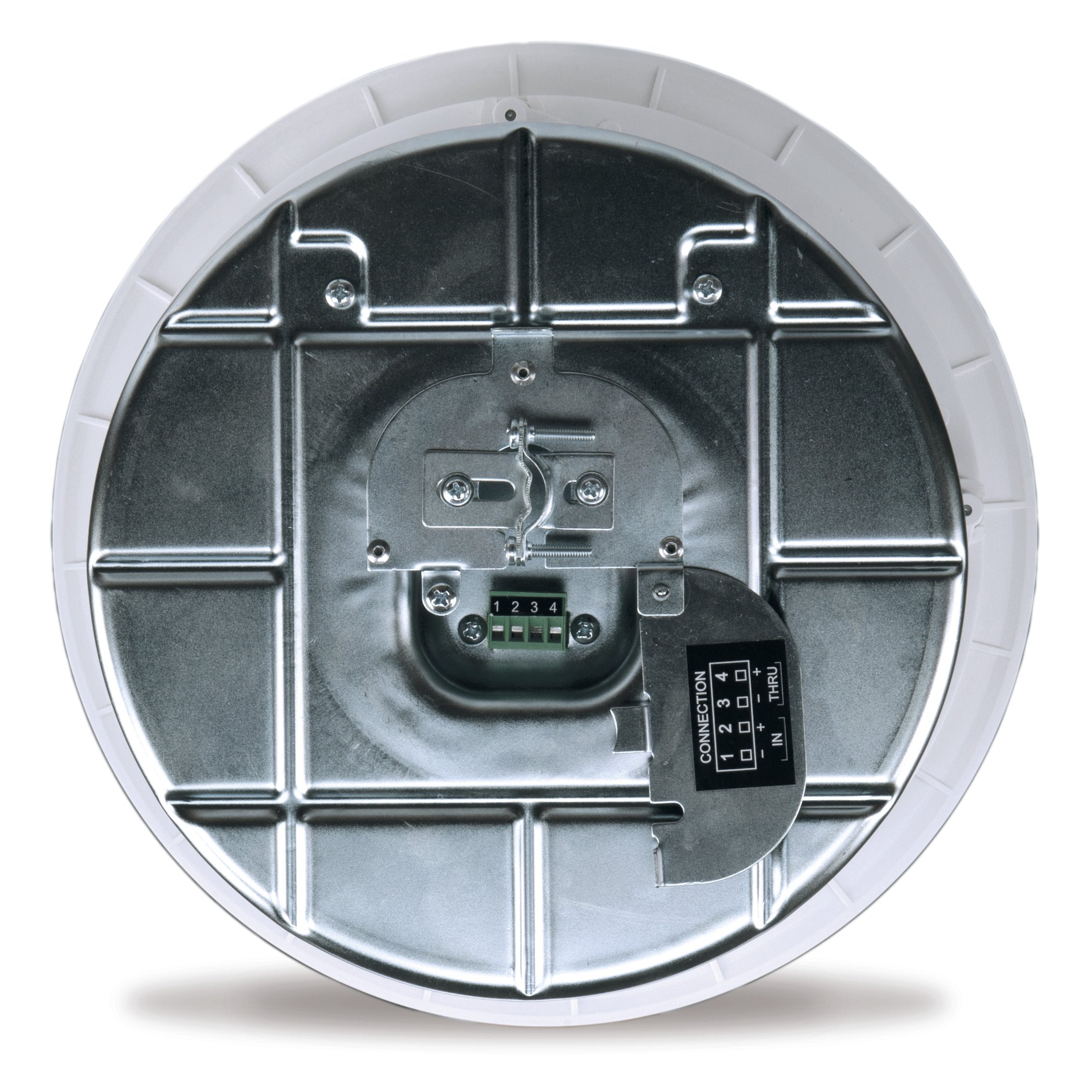

  • 4-pole Euroblock connector eases system wiring.
  • Intrinsic Correction™ voicings available via Q-SYS Platform.
  • White (RAL 9010).
Enquire Now

Product details

Technical Specifications

Effective Frequency Range:

52 Hz – 20 kHz

Rated Noise Power / Voltage:

80 watts / 25.3 volts (RMS)

Broad-band Sensitivity:

89 dB SPL

Coverage Angle (−6 dB):

100° (500 Hz to 5 kHz)

Maximum Continuous SPL:

108 dB

Maximum Peak SPL:

114 dB

Rated Impedance:

8 ohms

Transformer Taps:


  • 70V: 60W, 30W, 15W, 7.5W, 3.8W, 8-ohm bypass

  • 100V: 60W, 30W, 15W, 7.5W, 8-ohm bypass

HF Transducer:

22 mm (0.86") silk dome tweeter, coaxially mounted

LF Transducer:

210 mm (8") polypropylene cone with butyl rubber surround

Input Connector Type:

Euroblock connector with parallel output terminals

Baffle Material:

Painted ABS polymer

Grille Material:

Painted steel

Back Can Material:

Plated steel

Testing / Certifications:

Listed UL1480, UL2043 – safe for use in air-handling spaces

Net Weight:

5.2 kg (11.5 lb)

Product Dimensions:

Ø316 × 288 mm (Ø12.4 × 11.3")

Cut-out Dimensions:

Ø285 mm (Ø11.2")

Ceiling Capture Thickness:

6 – 38 mm (0.25 – 1.5")

Shipping Weight:

13.3 kg (29.3 lb) – pair packed

Shipping Dimensions:

743 × 381 × 381 mm (29.3 × 15 × 15")

Included Accessories:

Rails & C-ring for ceiling-tile installation

Optional Accessories:

AC-MR8 mud ring for sheet-rock installation
