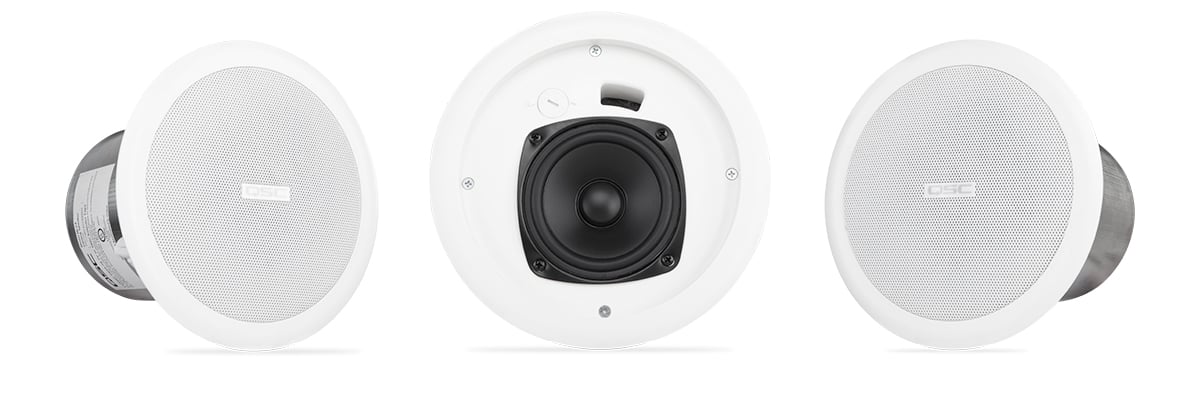

QSC AC 4 T WHITE (1X2)

QSC AC 4 T WHITE (1X2)

  • High quality 4-inch full-range transducer provides exceptional clarity through the critical voice range.
  • Ported baffle for increased low frequency extension down to 70 Hz.
  • Low-saturation 70V/100V transformers with 8-ohm bypass.
  • 4-pole Euroblock connector for easy system wiring.
  • Intrinsic Correction™ voicings available via Q-SYS Platform.
  • White (RAL 9010).
Enquire Now

Product details

Technical Specifications

Effective Frequency Range:

70 Hz – 16 kHz

Rated Noise Power / Voltage:

16 watts / 11.3 volts (RMS)

Broad-band Sensitivity:

89 dB SPL

Coverage Angle (−6 dB):

140° (500 Hz to 5 kHz)

Maximum Continuous SPL:

101 dB

Maximum Peak SPL:

107 dB

Rated Impedance:

8 ohms

Transformer Taps:


  • 70V: 16W, 8W, 4W, 2W, 1W, 8-ohm bypass

  • 100V: 16W, 8W, 4W, 2W, 8-ohm bypass

Transducer:

4-inch polypropylene cone with butyl rubber surround

Input Connector Type:

Euroblock connector with parallel output terminals

Baffle Material:

Painted ABS polymer

Grille Material:

Powder-coated steel

Back Can Material:

Galvanized steel

Testing / Certifications:

Listed UL1480, UL2043 – safe for use in air-handling spaces

Net Weight:

4.9 lb (2.22 kg)

Product Dimensions:

8.4" × 7.9" (214 × 201 mm)

Cut-out Dimensions:

7.31" (185.67 mm)

Ceiling Capture Thickness:

0.25" – 1.5" (6.35 – 38.1 mm)

Shipping Weight:

15.1 lb (6.86 kg)

Shipping Dimensions:

10.75" × 24" × 10.5"

(273.1 × 609.6 × 266.7 mm)

Included Accessories:

Rails and C-ring for ceiling tile installation
