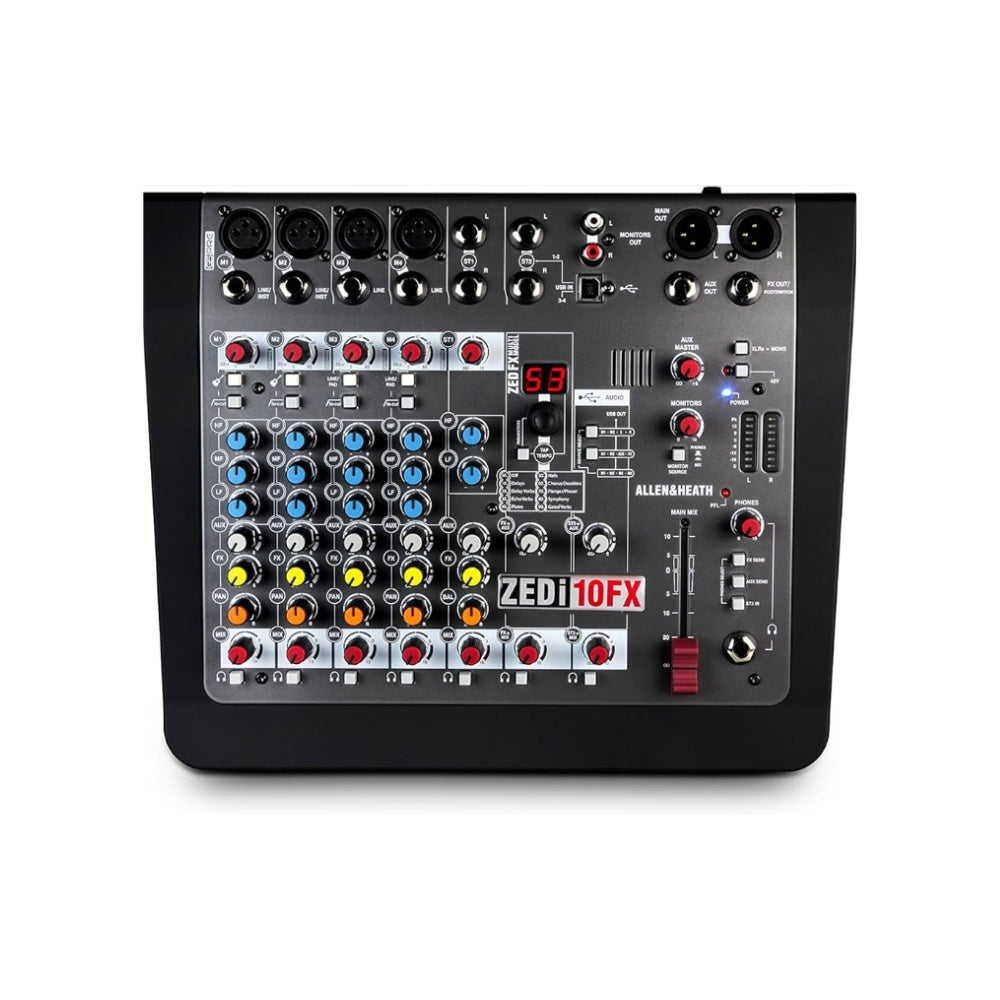

With excellent sound quality, built-in effects, and a built-in 4 x 4 USB audio interface, the Allen & Heath ZEDi-10FX is a smart mixer for small-format studio and stage applications. Connect four microphones or mono line-level signals, or even two instruments without the need for DI boxes. Two additional stereo channels are available for synthesizers, drum machines, and other line-level sources. Record and play back four channels of 24-bit/96kHz audio via USB without the need for a separate interface. Add reverbs, delays, and combinations of the two with built-in effects processing. Factor in its exceptional build quality, and the compact Allen & Heath ZEDi-10FX mixer stands out in its class.

Enquire Now

Product details

More Information
  • Rugged compact mixer with 2 mono channels, 2 stereo channels, and USB recording/playback

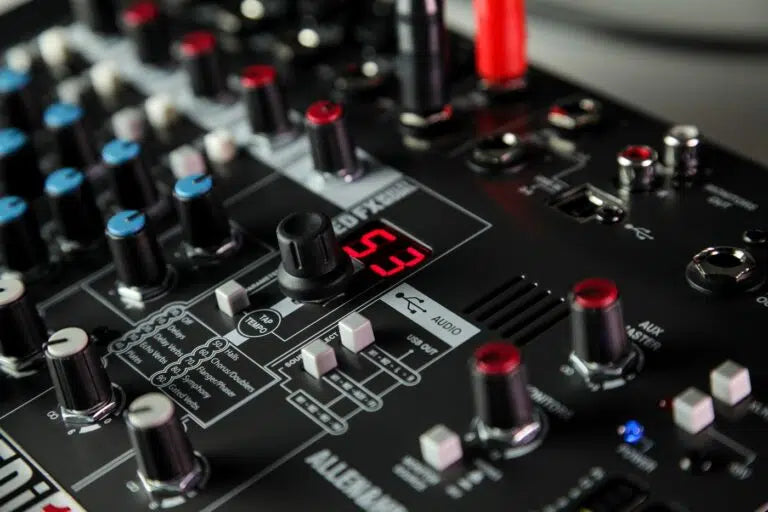

  • Multimodel effects include reverbs, delays, and combination effects
  • 4-in/4-out USB 2.0 interface supports 24-bit/96kHz audio quality
  • Includes Cubase LE DAW software for Mac/PC, and Cubasis LE app for iOS
  • GSPre mic preamps offer high headroom and low noise floor
  • Connect guitars and basses without separate DI boxes thanks to switchable hi-Z inputs
  • Low-cut filters to reduce rumble and other unwanted low frequencies
  • Effective sound shaping from 3-band EQs
  • Channels can be individually assigned to the headphone mix
  • XLR outputs for studio monitors or powered PA speakers
  • Smooth 60mm fader for controlling your main mix

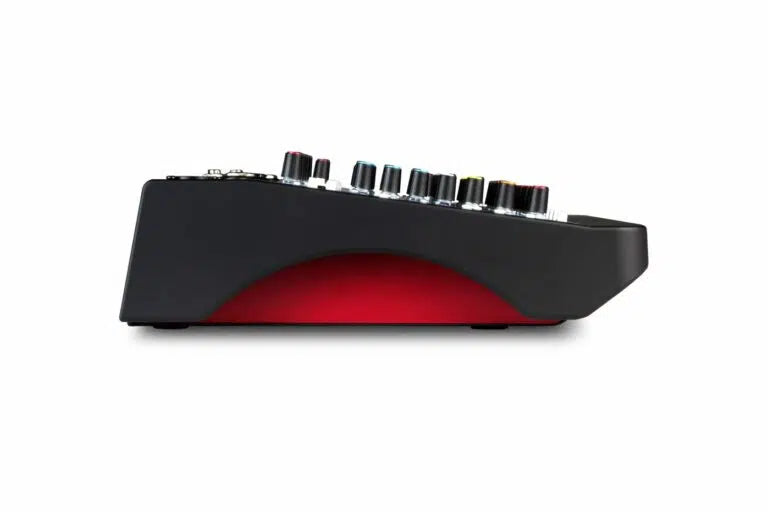

  • Rotary controls are secured to the faceplate with steel nuts for maximum durability
Technical Specifications
  • Type:Analog mixer with USB interface
  • Channels:10
  • Computer Connectivity:USB (4 x 4)
  • Faders:1 x 60mm Main Mix fader
  • Inputs - Mic Preamps:4
  • Phantom Power:4
  • Inputs - Line:4 x 1/4" TRS (2 x instrument high impedance)
  • Inputs - Other:4 x 1/4" TRS (stereo paired)
  • Outputs - Main:2 x XLR (left, right), 2 x RCA (stereo)
  • Outputs - Other:1 x 1/4" (aux out), 1 x 1/4" (FX out/footswitch)
  • Aux Sends:1 x Aux send, 1 x FX send
  • Headphones:1 x 1/4"
  • USB:1 x Type B
  • EQ Bands:3-band EQ
  • Effects:24-bit Mulit-effects, 99 presets
  • Software:Cubase LE (included)
  • Height:3.8"
  • Width:13.1"
  • Depth:10.8"
  • Weight:4.85 lbs.
  • Manufacturer Part Number:AH-ZEDi10FX
